| Measurement Modes | % Rfl & %Trn |
| Measurement Principle | Dual Beam |
| Sphere Dimension | 152 mm Diameter |
| Light Source | Pulsed Xenon |
| Wavelength Range | 360 nm To 700 nm |
| Wavelength Interval | 10 nm |
| Photometric Range | 0% To 200% |
| Optical Configuration | D/8 Or D/0 Viewing Geometry |
| Wavelength Accuracy | 0.1 nm (avg.) |
| Repeatability | Less Than 0.1 E Cielab (White Tile) |
| Inter Instrument | |
| Agreement (LAV) | 0.15 De (max.) |
| Measurement Time | 2 sec. |
| Large Area View (LAV) | 25.4 mm Diameter |
| Medium Area View (MAV) | 5.0 mm X 10.0 mm |
| *Small Area View (SAV) | 12.0 mm Diameter |
| *Very Small Area View (VSAV) | 3 mm Diameter |
| Uv Filter | In / Out |
| *Visible Cut-Off Filter | 420 nm / 465 nm / 560 nm |
| Specular Component | Included / Excluded |
| Operating Temperature | 15°C To 32°C |
| Relative Humidity | 90% Non-Condensing |
| Electrical Requirements | 110-120 VAC / 50-60 Hz Or 230-240 VAC / 50-60 Hz |
| Weight | 21 kg. approx. |
| Size | 54 cm X 29 cm X 23 cm |
Products & Services
Color Inspection & Measurement Instruments

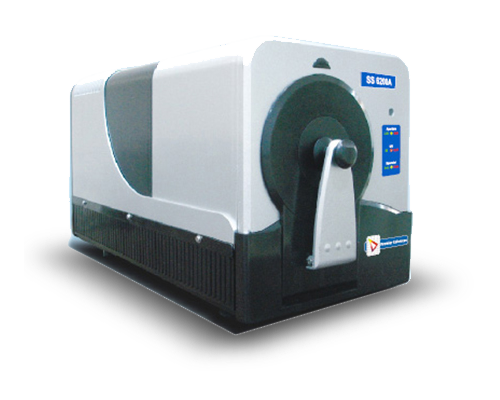

SS 6200A / SS 6200 Spectrophotometer
SS 6200A / SS 6200 is a State-of-the-Art dual beam UV visible spectrophotometer specially made for color measurement. It is extremely rugged in construction and very accurate in performance.
SS 6200A / SS 6200 is the result of our own in-depth study and sophisticated design after being in the field for long time, we have incorporated best features which can be seen on international class of spectros. It incorporates a highly advanced Holographic Diffraction Grating for dispersing reflected light, coupled with a highly sensitive and accurate discrete sensing photodiode array detector.
The integrating sphere conforms to CIE / ASTM specifications for size, which is 152 mm diameter. The source is a very stable long-life Xenon flash lamp which is carefully filtered to D65.
